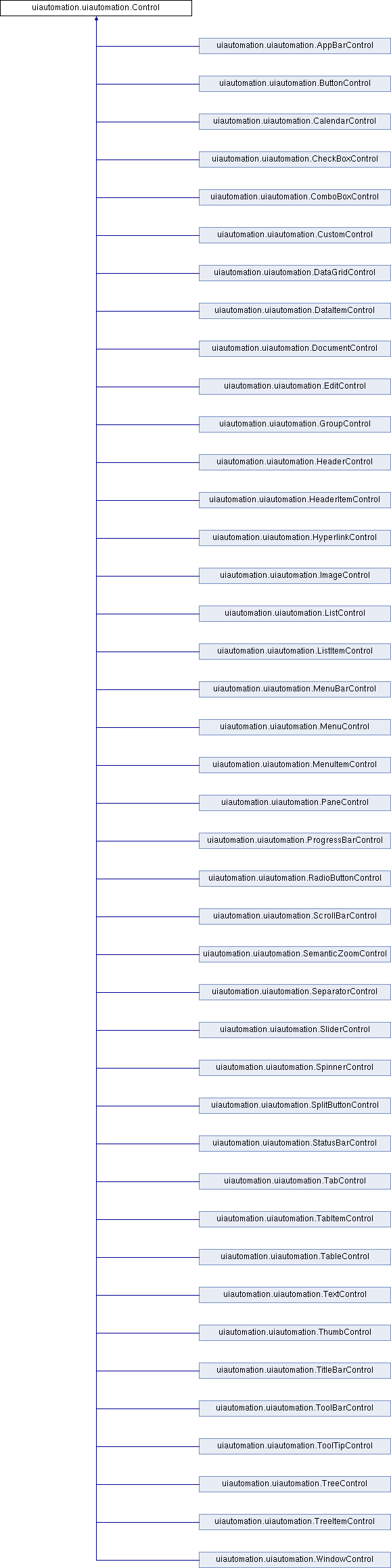

uiautomation.uiautomation.Control の継承関係図

公開メンバ関数
def	__init__ (self, 'Control' searchFromControl=None, int searchDepth=0xFFFFFFFF, float searchInterval=SEARCH_INTERVAL, int foundIndex=1, element=None, **searchProperties)

str	__str__ (self)

None	SetSearchFromControl (self, 'Control' searchFromControl)

None	SetSearchDepth (self, int searchDepth)

None	AddSearchProperties (self, **searchProperties)

None	RemoveSearchProperties (self, **searchProperties)

str	GetSearchPropertiesStr (self)

str	GetColorfulSearchPropertiesStr (self, keyColor='DarkGreen', valueColor='DarkCyan')

str	AcceleratorKey (self)

str	AccessKey (self)

str	AriaProperties (self)

str	AriaRole (self)

str	AutomationId (self)

Rect	BoundingRectangle (self)

str	ClassName (self)

int	ControlType (self)

int	Culture (self)

str	FrameworkId (self)

bool	HasKeyboardFocus (self)

str	HelpText (self)

bool	IsContentElement (self)

bool	IsControlElement (self)

bool	IsDataValidForForm (self)

bool	IsEnabled (self)

bool	IsKeyboardFocusable (self)

bool	IsOffscreen (self)

bool	IsPassword (self)

bool	IsRequiredForForm (self)

str	ItemStatus (self)

str	ItemType (self)

str	LocalizedControlType (self)

str	Name (self)

str	NativeWindowHandle (self)

int	Orientation (self)

int	ProcessId (self)

str	ProviderDescription (self)

Tuple[int, int, bool]	GetClickablePoint (self)

def	GetPattern (self, int patternId)

def	GetPatternAs (self, int patternId, riid)

Any	GetPropertyValue (self, int propertyId)

Any	GetPropertyValueEx (self, int propertyId, int ignoreDefaultValue)

List[int]	GetRuntimeId (self)

bool	SetFocus (self)

def	Element (self)

str	ControlTypeName (self)

def	GetCachedPattern (self, int patternId, bool cache)

LegacyIAccessiblePattern	GetLegacyIAccessiblePattern (self)

'Control'	GetAncestorControl (self, Callable[['Control', int], bool] condition)

'Control'	GetParentControl (self)

'Control'	GetFirstChildControl (self)

'Control'	GetLastChildControl (self)

'Control'	GetNextSiblingControl (self)

'Control'	GetPreviousSiblingControl (self)

'Control'	GetSiblingControl (self, Callable[['Control'], bool] condition, bool forward=True)

List[ 'Control']	GetChildren (self)

bool	Exists (self, float maxSearchSeconds=5, float searchIntervalSeconds=SEARCH_INTERVAL, bool printIfNotExist=False)

bool	Disappears (self, float maxSearchSeconds=5, float searchIntervalSeconds=SEARCH_INTERVAL, bool printIfNotDisappear=False)

bool	Refind (self, float maxSearchSeconds=TIME_OUT_SECOND, float searchIntervalSeconds=SEARCH_INTERVAL, bool raiseException=True)

Tuple[int, int]	MoveCursorToInnerPos (self, int x=None, int y=None, float ratioX=0.5, float ratioY=0.5, bool simulateMove=True)

Tuple[int, int]	MoveCursorToMyCenter (self, bool simulateMove=True)

None	Click (self, int x=None, int y=None, float ratioX=0.5, float ratioY=0.5, bool simulateMove=True, float waitTime=OPERATION_WAIT_TIME)

None	MiddleClick (self, int x=None, int y=None, float ratioX=0.5, float ratioY=0.5, bool simulateMove=True, float waitTime=OPERATION_WAIT_TIME)

None	RightClick (self, int x=None, int y=None, float ratioX=0.5, float ratioY=0.5, bool simulateMove=True, float waitTime=OPERATION_WAIT_TIME)

None	DoubleClick (self, int x=None, int y=None, float ratioX=0.5, float ratioY=0.5, bool simulateMove=True, float waitTime=OPERATION_WAIT_TIME)

None	DragDrop (self, int x1, int y1, int x2, int y2, float moveSpeed=1, float waitTime=OPERATION_WAIT_TIME)

None	WheelDown (self, int x=None, int y=None, float ratioX=0.5, float ratioY=0.5, int wheelTimes=1, float interval=0.05, float waitTime=OPERATION_WAIT_TIME)

None	WheelUp (self, int x=None, int y=None, float ratioX=0.5, float ratioY=0.5, int wheelTimes=1, float interval=0.05, float waitTime=OPERATION_WAIT_TIME)

bool	ShowWindow (self, int cmdShow, float waitTime=OPERATION_WAIT_TIME)

bool	Show (self, float waitTime=OPERATION_WAIT_TIME)

bool	Hide (self, float waitTime=OPERATION_WAIT_TIME)

bool	MoveWindow (self, int x, int y, int width, int height, bool repaint=True)

str	GetWindowText (self)

bool	SetWindowText (self, str text)

None	SendKey (self, int key, float waitTime=OPERATION_WAIT_TIME)

None	SendKeys (self, str text, float interval=0.01, float waitTime=OPERATION_WAIT_TIME, bool charMode=True)

int	GetPixelColor (self, int x, int y)

Bitmap	ToBitmap (self, int x=0, int y=0, int width=0, int height=0)

bool	CaptureToImage (self, str savePath, int x=0, int y=0, int width=0, int height=0)

bool	IsTopLevel (self)

'Control'	GetTopLevelControl (self)

'Control'	Control (self, searchDepth=0xFFFFFFFF, searchInterval=SEARCH_INTERVAL, foundIndex=1, element=0, **searchProperties)

'ButtonControl'	ButtonControl (self, searchDepth=0xFFFFFFFF, searchInterval=SEARCH_INTERVAL, foundIndex=1, element=0, **searchProperties)

'CalendarControl'	CalendarControl (self, searchDepth=0xFFFFFFFF, searchInterval=SEARCH_INTERVAL, foundIndex=1, element=0, **searchProperties)

'CheckBoxControl'	CheckBoxControl (self, searchDepth=0xFFFFFFFF, searchInterval=SEARCH_INTERVAL, foundIndex=1, element=0, **searchProperties)

'ComboBoxControl'	ComboBoxControl (self, searchDepth=0xFFFFFFFF, searchInterval=SEARCH_INTERVAL, foundIndex=1, element=0, **searchProperties)

'CustomControl'	CustomControl (self, searchDepth=0xFFFFFFFF, searchInterval=SEARCH_INTERVAL, foundIndex=1, element=0, **searchProperties)

'DataGridControl'	DataGridControl (self, searchDepth=0xFFFFFFFF, searchInterval=SEARCH_INTERVAL, foundIndex=1, element=0, **searchProperties)

'DataItemControl'	DataItemControl (self, searchDepth=0xFFFFFFFF, searchInterval=SEARCH_INTERVAL, foundIndex=1, element=0, **searchProperties)

'DocumentControl'	DocumentControl (self, searchDepth=0xFFFFFFFF, searchInterval=SEARCH_INTERVAL, foundIndex=1, element=0, **searchProperties)

'EditControl'	EditControl (self, searchDepth=0xFFFFFFFF, searchInterval=SEARCH_INTERVAL, foundIndex=1, element=0, **searchProperties)

'GroupControl'	GroupControl (self, searchDepth=0xFFFFFFFF, searchInterval=SEARCH_INTERVAL, foundIndex=1, element=0, **searchProperties)

'HeaderControl'	HeaderControl (self, searchDepth=0xFFFFFFFF, searchInterval=SEARCH_INTERVAL, foundIndex=1, element=0, **searchProperties)

'HeaderItemControl'	HeaderItemControl (self, searchDepth=0xFFFFFFFF, searchInterval=SEARCH_INTERVAL, foundIndex=1, element=0, **searchProperties)

'HyperlinkControl'	HyperlinkControl (self, searchDepth=0xFFFFFFFF, searchInterval=SEARCH_INTERVAL, foundIndex=1, element=0, **searchProperties)

'ImageControl'	ImageControl (self, searchDepth=0xFFFFFFFF, searchInterval=SEARCH_INTERVAL, foundIndex=1, element=0, **searchProperties)

'listControl'	ListControl (self, searchDepth=0xFFFFFFFF, searchInterval=SEARCH_INTERVAL, foundIndex=1, element=0, **searchProperties)

'ListItemControl'	ListItemControl (self, searchDepth=0xFFFFFFFF, searchInterval=SEARCH_INTERVAL, foundIndex=1, element=0, **searchProperties)

'MenuControl'	MenuControl (self, searchDepth=0xFFFFFFFF, searchInterval=SEARCH_INTERVAL, foundIndex=1, element=0, **searchProperties)

'MenuBarControl'	MenuBarControl (self, searchDepth=0xFFFFFFFF, searchInterval=SEARCH_INTERVAL, foundIndex=1, element=0, **searchProperties)

'MenuItemControl'	MenuItemControl (self, searchDepth=0xFFFFFFFF, searchInterval=SEARCH_INTERVAL, foundIndex=1, element=0, **searchProperties)

'PaneControl'	PaneControl (self, searchDepth=0xFFFFFFFF, searchInterval=SEARCH_INTERVAL, foundIndex=1, element=0, **searchProperties)

'ProgressBarControl'	ProgressBarControl (self, searchDepth=0xFFFFFFFF, searchInterval=SEARCH_INTERVAL, foundIndex=1, element=0, **searchProperties)

'RadioButtonControl'	RadioButtonControl (self, searchDepth=0xFFFFFFFF, searchInterval=SEARCH_INTERVAL, foundIndex=1, element=0, **searchProperties)

'ScrollBarControl'	ScrollBarControl (self, searchDepth=0xFFFFFFFF, searchInterval=SEARCH_INTERVAL, foundIndex=1, element=0, **searchProperties)

'SemanticZoomControl'	SemanticZoomControl (self, searchDepth=0xFFFFFFFF, searchInterval=SEARCH_INTERVAL, foundIndex=1, element=0, **searchProperties)

'SeparatorControl'	SeparatorControl (self, searchDepth=0xFFFFFFFF, searchInterval=SEARCH_INTERVAL, foundIndex=1, element=0, **searchProperties)

'SliderControl'	SliderControl (self, searchDepth=0xFFFFFFFF, searchInterval=SEARCH_INTERVAL, foundIndex=1, element=0, **searchProperties)

'SpinnerControl'	SpinnerControl (self, searchDepth=0xFFFFFFFF, searchInterval=SEARCH_INTERVAL, foundIndex=1, element=0, **searchProperties)

'SplitButtonControl'	SplitButtonControl (self, searchDepth=0xFFFFFFFF, searchInterval=SEARCH_INTERVAL, foundIndex=1, element=0, **searchProperties)

'StatusBarControl'	StatusBarControl (self, searchDepth=0xFFFFFFFF, searchInterval=SEARCH_INTERVAL, foundIndex=1, element=0, **searchProperties)

'TabControl'	TabControl (self, searchDepth=0xFFFFFFFF, searchInterval=SEARCH_INTERVAL, foundIndex=1, element=0, **searchProperties)

'TabItemControl'	TabItemControl (self, searchDepth=0xFFFFFFFF, searchInterval=SEARCH_INTERVAL, foundIndex=1, element=0, **searchProperties)

'TableControl'	TableControl (self, searchDepth=0xFFFFFFFF, searchInterval=SEARCH_INTERVAL, foundIndex=1, element=0, **searchProperties)

'TextControl'	TextControl (self, searchDepth=0xFFFFFFFF, searchInterval=SEARCH_INTERVAL, foundIndex=1, element=0, **searchProperties)

'ThumbControl'	ThumbControl (self, searchDepth=0xFFFFFFFF, searchInterval=SEARCH_INTERVAL, foundIndex=1, element=0, **searchProperties)

'TitleBarControl'	TitleBarControl (self, searchDepth=0xFFFFFFFF, searchInterval=SEARCH_INTERVAL, foundIndex=1, element=0, **searchProperties)

'ToolBarControl'	ToolBarControl (self, searchDepth=0xFFFFFFFF, searchInterval=SEARCH_INTERVAL, foundIndex=1, element=0, **searchProperties)

'ToolTipControl'	ToolTipControl (self, searchDepth=0xFFFFFFFF, searchInterval=SEARCH_INTERVAL, foundIndex=1, element=0, **searchProperties)

'TreeControl'	TreeControl (self, searchDepth=0xFFFFFFFF, searchInterval=SEARCH_INTERVAL, foundIndex=1, element=0, **searchProperties)

'TreeItemControl'	TreeItemControl (self, searchDepth=0xFFFFFFFF, searchInterval=SEARCH_INTERVAL, foundIndex=1, element=0, **searchProperties)

'WindowControl'	WindowControl (self, searchDepth=0xFFFFFFFF, searchInterval=SEARCH_INTERVAL, foundIndex=1, element=0, **searchProperties)

静的公開メンバ関数
'Control'	CreateControlFromElement (element)

'Control'	CreateControlFromControl ('Control' control)

公開変数類
	searchFromControl

	searchDepth

	searchInterval

	foundIndex

	searchProperties

	regexName

静的公開変数類
	ValidKeys = set(['ControlType', 'ClassName', 'AutomationId', 'Name', 'SubName', 'RegexName', 'Depth', 'Compare'])

構築子と解体子

◆ init()

def uiautomation.uiautomation.Control.__init__	(		self,
		'Control'	searchFromControl = `None`,
		int	searchDepth = `0xFFFFFFFF`,
		float	searchInterval = `SEARCH_INTERVAL`,
		int	foundIndex = `1`,
			element = `None`,
		**	searchProperties
	)

searchFromControl: `Control` or its subclass, if it is None, search from root control(Desktop).
searchDepth: int, max search depth from searchFromControl.
foundIndex: int, starts with 1, >= 1.
searchInterval: float, wait searchInterval after every search in self.Refind and self.Exists, the global timeout is TIME_OUT_SECOND.
element: `ctypes.POINTER(IUIAutomationElement)`, internal use only.
searchProperties: defines how to search, the following keys can be used:
                    ControlType: int, a value in class `ControlType`.
                    ClassName: str.
                    AutomationId: str.
                    Name: str.
                    SubName: str, a part str in Name.
                    RegexName: str, supports regex using re.match.
                        You can only use one of Name, SubName, RegexName in searchProperties.
                    Depth: int, only search controls in relative depth from searchFromControl, ignore controls in depth(0~Depth-1),
                        if set, searchDepth will be set to Depth too.
                    Compare: Callable[[Control, int], bool], custom compare function(control: Control, depth: int) -> bool.

`Control` wraps IUIAutomationElement.
Refer https://docs.microsoft.com/en-us/windows/desktop/api/uiautomationclient/nn-uiautomationclient-iuiautomationelement

◆ Control()

'Control' uiautomation.uiautomation.Control.Control	(		self,
			searchDepth = `0xFFFFFFFF`,
			searchInterval = `SEARCH_INTERVAL`,
			foundIndex = `1`,
			element = `0`,
		**	searchProperties
	)

メソッド詳解

◆ str()

str uiautomation.uiautomation.Control.__str__ ( self )

◆ AcceleratorKey()

str uiautomation.uiautomation.Control.AcceleratorKey ( self )

Property AcceleratorKey.
Call IUIAutomationElement::get_CurrentAcceleratorKey.
Refer https://docs.microsoft.com/en-us/windows/desktop/api/uiautomationclient/nf-uiautomationclient-iuiautomationelement-get_currentacceleratorkey

◆ AccessKey()

str uiautomation.uiautomation.Control.AccessKey ( self )

Property AccessKey.
Call IUIAutomationElement::get_CurrentAccessKey.
Refer https://docs.microsoft.com/en-us/windows/desktop/api/uiautomationclient/nf-uiautomationclient-iuiautomationelement-get_currentaccesskey

◆ AddSearchProperties()

None uiautomation.uiautomation.Control.AddSearchProperties	(		self,
		**	searchProperties
	)

Add search properties using `dict.update`.
searchProperties: dict, same as searchProperties in `Control.__init__`.

◆ AriaProperties()

str uiautomation.uiautomation.Control.AriaProperties ( self )

Property AriaProperties.
Call IUIAutomationElement::get_CurrentAriaProperties.
Refer https://docs.microsoft.com/en-us/windows/desktop/api/uiautomationclient/nf-uiautomationclient-iuiautomationelement-get_currentariaproperties

◆ AriaRole()

str uiautomation.uiautomation.Control.AriaRole ( self )

Property AriaRole.
Call IUIAutomationElement::get_CurrentAriaRole.
Refer https://docs.microsoft.com/en-us/windows/desktop/api/uiautomationclient/nf-uiautomationclient-iuiautomationelement-get_currentariarole

◆ AutomationId()

str uiautomation.uiautomation.Control.AutomationId ( self )

Property AutomationId.
Call IUIAutomationElement::get_CurrentAutomationId.
Refer https://docs.microsoft.com/en-us/windows/desktop/api/uiautomationclient/nf-uiautomationclient-iuiautomationelement-get_currentautomationid

◆ BoundingRectangle()

Rect uiautomation.uiautomation.Control.BoundingRectangle ( self )

Property BoundingRectangle.
Call IUIAutomationElement::get_CurrentBoundingRectangle.
Return `Rect`.
Refer https://docs.microsoft.com/en-us/windows/desktop/api/uiautomationclient/nf-uiautomationclient-iuiautomationelement-get_currentboundingrectangle

rect = control.BoundingRectangle
print(rect.left, rect.top, rect.right, rect.bottom, rect.width(), rect.height(), rect.xcenter(), rect.ycenter())

◆ ButtonControl()

'ButtonControl' uiautomation.uiautomation.Control.ButtonControl	(		self,
			searchDepth = `0xFFFFFFFF`,
			searchInterval = `SEARCH_INTERVAL`,
			foundIndex = `1`,
			element = `0`,
		**	searchProperties
	)

◆ CalendarControl()

'CalendarControl' uiautomation.uiautomation.Control.CalendarControl	(		self,
			searchDepth = `0xFFFFFFFF`,
			searchInterval = `SEARCH_INTERVAL`,
			foundIndex = `1`,
			element = `0`,
		**	searchProperties
	)

◆ CaptureToImage()

bool uiautomation.uiautomation.Control.CaptureToImage	(		self,
		str	savePath,
		int	x = `0`,
		int	y = `0`,
		int	width = `0`,
		int	height = `0`
	)

Capture control to a image file.
savePath: str, should end with .bmp, .jpg, .jpeg, .png, .gif, .tif, .tiff.
x, y: int, the point in control's internal position(from 0,0).
width, height: int, image's width and height from x, y, use 0 for entire area.
               If width(or height) < 0, image size will be control's width(or height) - width(or height).
Return bool, True if succeed otherwise False.

◆ CheckBoxControl()

'CheckBoxControl' uiautomation.uiautomation.Control.CheckBoxControl	(		self,
			searchDepth = `0xFFFFFFFF`,
			searchInterval = `SEARCH_INTERVAL`,
			foundIndex = `1`,
			element = `0`,
		**	searchProperties
	)

◆ ClassName()

str uiautomation.uiautomation.Control.ClassName ( self )

Property ClassName.
Call IUIAutomationElement::get_CurrentClassName.
Refer https://docs.microsoft.com/en-us/windows/desktop/api/uiautomationclient/nf-uiautomationclient-iuiautomationelement-get_currentclassname

◆ Click()

None uiautomation.uiautomation.Control.Click	(		self,
		int	x = `None`,
		int	y = `None`,
		float	ratioX = `0.5`,
		float	ratioY = `0.5`,
		bool	simulateMove = `True`,
		float	waitTime = `OPERATION_WAIT_TIME`
	)

x: int, if < 0, click self.BoundingRectangle.right + x, if not None, ignore ratioX.
y: int, if < 0, click self.BoundingRectangle.bottom + y, if not None, ignore ratioY.
ratioX: float.
ratioY: float.
simulateMove: bool, if True, first move cursor to control smoothly.
waitTime: float.

Click(), Click(ratioX=0.5, ratioY=0.5): click center.
Click(10, 10): click left+10, top+10.
Click(-10, -10): click right-10, bottom-10.

◆ ComboBoxControl()

'ComboBoxControl' uiautomation.uiautomation.Control.ComboBoxControl	(		self,
			searchDepth = `0xFFFFFFFF`,
			searchInterval = `SEARCH_INTERVAL`,
			foundIndex = `1`,
			element = `0`,
		**	searchProperties
	)

◆ ControlType()

int uiautomation.uiautomation.Control.ControlType ( self )

Property ControlType.
Return int, a value in class `ControlType`.
Call IUIAutomationElement::get_CurrentControlType.
Refer https://docs.microsoft.com/en-us/windows/desktop/api/uiautomationclient/nf-uiautomationclient-iuiautomationelement-get_currentcontroltype

◆ ControlTypeName()

str uiautomation.uiautomation.Control.ControlTypeName ( self )

Property ControlTypeName.

◆ CreateControlFromControl()

'Control' uiautomation.uiautomation.Control.CreateControlFromControl ( 'Control' control )

static

Create a concreate `Control` from a control instance, copy it.
control: `Control` or its subclass.
Return a subclass of `Control`, an instance of the control's real type.
For example: if control's ControlType is EditControl, return an EditControl.

◆ CreateControlFromElement()

'Control' uiautomation.uiautomation.Control.CreateControlFromElement ( element )

static

Create a concreate `Control` from a com type `IUIAutomationElement`.
element: `ctypes.POINTER(IUIAutomationElement)`.
Return a subclass of `Control`, an instance of the control's real type.

◆ Culture()

int uiautomation.uiautomation.Control.Culture ( self )

Property Culture.
Call IUIAutomationElement::get_CurrentCulture.
Refer https://docs.microsoft.com/en-us/windows/desktop/api/uiautomationclient/nf-uiautomationclient-iuiautomationelement-get_currentculture

◆ CustomControl()

'CustomControl' uiautomation.uiautomation.Control.CustomControl	(		self,
			searchDepth = `0xFFFFFFFF`,
			searchInterval = `SEARCH_INTERVAL`,
			foundIndex = `1`,
			element = `0`,
		**	searchProperties
	)

◆ DataGridControl()

'DataGridControl' uiautomation.uiautomation.Control.DataGridControl	(		self,
			searchDepth = `0xFFFFFFFF`,
			searchInterval = `SEARCH_INTERVAL`,
			foundIndex = `1`,
			element = `0`,
		**	searchProperties
	)

◆ DataItemControl()

'DataItemControl' uiautomation.uiautomation.Control.DataItemControl	(		self,
			searchDepth = `0xFFFFFFFF`,
			searchInterval = `SEARCH_INTERVAL`,
			foundIndex = `1`,
			element = `0`,
		**	searchProperties
	)

◆ Disappears()

bool uiautomation.uiautomation.Control.Disappears	(		self,
		float	maxSearchSeconds = `5`,
		float	searchIntervalSeconds = `SEARCH_INTERVAL`,
		bool	printIfNotDisappear = `False`
	)

maxSearchSeconds: float
searchIntervalSeconds: float
Check if control disappears every searchIntervalSeconds seconds in maxSearchSeconds seconds.
Return bool, True if control disappears.

◆ DocumentControl()

'DocumentControl' uiautomation.uiautomation.Control.DocumentControl	(		self,
			searchDepth = `0xFFFFFFFF`,
			searchInterval = `SEARCH_INTERVAL`,
			foundIndex = `1`,
			element = `0`,
		**	searchProperties
	)

◆ DoubleClick()

None uiautomation.uiautomation.Control.DoubleClick	(		self,
		int	x = `None`,
		int	y = `None`,
		float	ratioX = `0.5`,
		float	ratioY = `0.5`,
		bool	simulateMove = `True`,
		float	waitTime = `OPERATION_WAIT_TIME`
	)

x: int, if < 0, right click self.BoundingRectangle.right + x, if not None, ignore ratioX.
y: int, if < 0, right click self.BoundingRectangle.bottom + y, if not None, ignore ratioY.
ratioX: float.
ratioY: float.
simulateMove: bool, if True, first move cursor to control smoothly.
waitTime: float.

DoubleClick(), DoubleClick(ratioX=0.5, ratioY=0.5): double click center.
DoubleClick(10, 10): double click left+10, top+10.
DoubleClick(-10, -10): double click right-10, bottom-10.

◆ DragDrop()

None uiautomation.uiautomation.Control.DragDrop	(		self,
		int	x1,
		int	y1,
		int	x2,
		int	y2,
		float	moveSpeed = `1`,
		float	waitTime = `OPERATION_WAIT_TIME`
	)

◆ EditControl()

'EditControl' uiautomation.uiautomation.Control.EditControl	(		self,
			searchDepth = `0xFFFFFFFF`,
			searchInterval = `SEARCH_INTERVAL`,
			foundIndex = `1`,
			element = `0`,
		**	searchProperties
	)

◆ Element()

def uiautomation.uiautomation.Control.Element ( self )

Property Element.
Return `ctypes.POINTER(IUIAutomationElement)`.

◆ Exists()

bool uiautomation.uiautomation.Control.Exists	(		self,
		float	maxSearchSeconds = `5`,
		float	searchIntervalSeconds = `SEARCH_INTERVAL`,
		bool	printIfNotExist = `False`
	)

maxSearchSeconds: float
searchIntervalSeconds: float
Find control every searchIntervalSeconds seconds in maxSearchSeconds seconds.
Return bool, True if find

◆ FrameworkId()

str uiautomation.uiautomation.Control.FrameworkId ( self )

Property FrameworkId.
Call IUIAutomationElement::get_CurrentFrameworkId.
Return str, such as Win32, WPF...
Refer https://docs.microsoft.com/en-us/windows/desktop/api/uiautomationclient/nf-uiautomationclient-iuiautomationelement-get_currentframeworkid

◆ GetAncestorControl()

'Control' uiautomation.uiautomation.Control.GetAncestorControl	(		self,
		Callable[['Control', int], bool]	condition
	)

Get an ancestor control that matches the condition.
condition: Callable[[Control, int], bool], function(control: Control, depth: int) -> bool,
           depth starts with -1 and decreses when search goes up.
Return `Control` subclass or None.

◆ GetCachedPattern()

def uiautomation.uiautomation.Control.GetCachedPattern	(		self,
		int	patternId,
		bool	cache
	)

Get a pattern by patternId.
patternId: int, a value in class `PatternId`.
Return a pattern if it supports the pattern else None.
cache: bool, if True, store the pattern for later use, if False, get a new pattern by `self.GetPattern`.

◆ GetChildren()

List['Control'] uiautomation.uiautomation.Control.GetChildren ( self )

Return List[Control], a list of `Control` subclasses.

◆ GetClickablePoint()

Tuple[int, int, bool] uiautomation.uiautomation.Control.GetClickablePoint ( self )

Call IUIAutomationElement::GetClickablePoint.
Return Tuple[int, int, bool], three items tuple (x, y, gotClickable), such as (20, 10, True)
Refer https://docs.microsoft.com/en-us/windows/desktop/api/uiautomationclient/nf-uiautomationclient-iuiautomationelement-getclickablepoint

◆ GetColorfulSearchPropertiesStr()

str uiautomation.uiautomation.Control.GetColorfulSearchPropertiesStr	(	self,
		keyColor = `'DarkGreen'`,
		valueColor = `'DarkCyan'`
	)

keyColor, valueColor: str, color name in class ConsoleColor

◆ GetFirstChildControl()

'Control' uiautomation.uiautomation.Control.GetFirstChildControl ( self )

Return `Control` subclass or None.

◆ GetLastChildControl()

'Control' uiautomation.uiautomation.Control.GetLastChildControl ( self )

Return `Control` subclass or None.

◆ GetLegacyIAccessiblePattern()

LegacyIAccessiblePattern uiautomation.uiautomation.Control.GetLegacyIAccessiblePattern ( self )

Return `LegacyIAccessiblePattern` if it supports the pattern else None.

◆ GetNextSiblingControl()

'Control' uiautomation.uiautomation.Control.GetNextSiblingControl ( self )

Return `Control` subclass or None.

◆ GetParentControl()

'Control' uiautomation.uiautomation.Control.GetParentControl ( self )

Return `Control` subclass or None.

◆ GetPattern()

def uiautomation.uiautomation.Control.GetPattern	(		self,
		int	patternId
	)

Call IUIAutomationElement::GetCurrentPattern.
Get a new pattern by pattern id if it supports the pattern.
patternId: int, a value in class `PatternId`.
Refer https://docs.microsoft.com/en-us/windows/desktop/api/uiautomationclient/nf-uiautomationclient-iuiautomationelement-getcurrentpattern

◆ GetPatternAs()

def uiautomation.uiautomation.Control.GetPatternAs	(		self,
		int	patternId,
			riid
	)

Call IUIAutomationElement::GetCurrentPatternAs.
Get a new pattern by pattern id if it supports the pattern, todo.
patternId: int, a value in class `PatternId`.
riid: GUID.
Refer https://docs.microsoft.com/en-us/windows/desktop/api/uiautomationclient/nf-uiautomationclient-iuiautomationelement-getcurrentpatternas

◆ GetPixelColor()

int uiautomation.uiautomation.Control.GetPixelColor	(		self,
		int	x,
		int	y
	)

Call native `GetPixelColor` if control has a valid native handle.
Use `self.ToBitmap` if control doesn't have a valid native handle or you get many pixels.
x: int, internal x position.
y: int, internal y position.
Return int, a color value in bgr.
r = bgr & 0x0000FF
g = (bgr & 0x00FF00) >> 8
b = (bgr & 0xFF0000) >> 16

◆ GetPreviousSiblingControl()

'Control' uiautomation.uiautomation.Control.GetPreviousSiblingControl ( self )

Return `Control` subclass or None.

◆ GetPropertyValue()

Any uiautomation.uiautomation.Control.GetPropertyValue	(		self,
		int	propertyId
	)

Call IUIAutomationElement::GetCurrentPropertyValue.
propertyId: int, a value in class `PropertyId`.
Return Any, corresponding type according to propertyId.
Refer https://docs.microsoft.com/en-us/windows/desktop/api/uiautomationclient/nf-uiautomationclient-iuiautomationelement-getcurrentpropertyvalue

◆ GetPropertyValueEx()

Any uiautomation.uiautomation.Control.GetPropertyValueEx	(		self,
		int	propertyId,
		int	ignoreDefaultValue
	)

Call IUIAutomationElement::GetCurrentPropertyValueEx.
propertyId: int, a value in class `PropertyId`.
ignoreDefaultValue: int, 0 or 1.
Return Any, corresponding type according to propertyId.
Refer https://docs.microsoft.com/en-us/windows/desktop/api/uiautomationclient/nf-uiautomationclient-iuiautomationelement-getcurrentpropertyvalueex

◆ GetRuntimeId()

List[int] uiautomation.uiautomation.Control.GetRuntimeId ( self )

Call IUIAutomationElement::GetRuntimeId.
Return List[int], a list of int.
Refer https://docs.microsoft.com/en-us/windows/desktop/api/uiautomationclient/nf-uiautomationclient-iuiautomationelement-getruntimeid

◆ GetSearchPropertiesStr()

str uiautomation.uiautomation.Control.GetSearchPropertiesStr ( self )

◆ GetSiblingControl()

'Control' uiautomation.uiautomation.Control.GetSiblingControl	(		self,
		Callable[['Control'], bool]	condition,
		bool	forward = `True`
	)

Get a sibling control that matches the condition.
forward: bool, if True, only search next siblings, if False, search pervious siblings first, then search next siblings.
condition: Callable[[Control], bool], function(control: Control) -> bool.
Return `Control` subclass or None.

◆ GetTopLevelControl()

'Control' uiautomation.uiautomation.Control.GetTopLevelControl ( self )

Get the top level control which current control lays.
If current control is top level, return self.
If current control is root control, return None.
Return `PaneControl` or `WindowControl` or None.

◆ GetWindowText()

str uiautomation.uiautomation.Control.GetWindowText ( self )

Call native GetWindowText if control has a valid native handle.

◆ GroupControl()

'GroupControl' uiautomation.uiautomation.Control.GroupControl	(		self,
			searchDepth = `0xFFFFFFFF`,
			searchInterval = `SEARCH_INTERVAL`,
			foundIndex = `1`,
			element = `0`,
		**	searchProperties
	)

◆ HasKeyboardFocus()

bool uiautomation.uiautomation.Control.HasKeyboardFocus ( self )

Property HasKeyboardFocus.
Call IUIAutomationElement::get_CurrentHasKeyboardFocus.
Refer https://docs.microsoft.com/en-us/windows/desktop/api/uiautomationclient/nf-uiautomationclient-iuiautomationelement-get_currenthaskeyboardfocus

◆ HeaderControl()

'HeaderControl' uiautomation.uiautomation.Control.HeaderControl	(		self,
			searchDepth = `0xFFFFFFFF`,
			searchInterval = `SEARCH_INTERVAL`,
			foundIndex = `1`,
			element = `0`,
		**	searchProperties
	)

◆ HeaderItemControl()

'HeaderItemControl' uiautomation.uiautomation.Control.HeaderItemControl	(		self,
			searchDepth = `0xFFFFFFFF`,
			searchInterval = `SEARCH_INTERVAL`,
			foundIndex = `1`,
			element = `0`,
		**	searchProperties
	)

◆ HelpText()

str uiautomation.uiautomation.Control.HelpText ( self )

Property HelpText.
Call IUIAutomationElement::get_CurrentHelpText.
Refer https://docs.microsoft.com/en-us/windows/desktop/api/uiautomationclient/nf-uiautomationclient-iuiautomationelement-get_currenthelptext

◆ Hide()

bool uiautomation.uiautomation.Control.Hide	(		self,
		float	waitTime = `OPERATION_WAIT_TIME`
	)

Call native `ShowWindow(SW.Hide)`.
waitTime: float
Return bool, True if succeed otherwise False.

◆ HyperlinkControl()

'HyperlinkControl' uiautomation.uiautomation.Control.HyperlinkControl	(		self,
			searchDepth = `0xFFFFFFFF`,
			searchInterval = `SEARCH_INTERVAL`,
			foundIndex = `1`,
			element = `0`,
		**	searchProperties
	)

◆ ImageControl()

'ImageControl' uiautomation.uiautomation.Control.ImageControl	(		self,
			searchDepth = `0xFFFFFFFF`,
			searchInterval = `SEARCH_INTERVAL`,
			foundIndex = `1`,
			element = `0`,
		**	searchProperties
	)

◆ IsContentElement()

bool uiautomation.uiautomation.Control.IsContentElement ( self )

Property IsContentElement.
Call IUIAutomationElement::get_CurrentIsContentElement.
Refer https://docs.microsoft.com/en-us/windows/desktop/api/uiautomationclient/nf-uiautomationclient-iuiautomationelement-get_currentiscontentelement

◆ IsControlElement()

bool uiautomation.uiautomation.Control.IsControlElement ( self )

Property IsControlElement.
Call IUIAutomationElement::get_CurrentIsControlElement.
Refer https://docs.microsoft.com/en-us/windows/desktop/api/uiautomationclient/nf-uiautomationclient-iuiautomationelement-get_currentiscontrolelement

◆ IsDataValidForForm()

bool uiautomation.uiautomation.Control.IsDataValidForForm ( self )

Property IsDataValidForForm.
Call IUIAutomationElement::get_CurrentIsDataValidForForm.
Refer https://docs.microsoft.com/en-us/windows/desktop/api/uiautomationclient/nf-uiautomationclient-iuiautomationelement-get_currentisdatavalidforform

◆ IsEnabled()

bool uiautomation.uiautomation.Control.IsEnabled ( self )

Property IsEnabled.
Call IUIAutomationElement::get_CurrentIsEnabled.
Refer https://docs.microsoft.com/en-us/windows/desktop/api/uiautomationclient/nf-uiautomationclient-iuiautomationelement-get_currentisenabled

◆ IsKeyboardFocusable()

bool uiautomation.uiautomation.Control.IsKeyboardFocusable ( self )

Property IsKeyboardFocusable.
Call IUIAutomationElement::get_CurrentIsKeyboardFocusable.
Refer https://docs.microsoft.com/en-us/windows/desktop/api/uiautomationclient/nf-uiautomationclient-iuiautomationelement-get_currentiskeyboardfocusable

◆ IsOffscreen()

bool uiautomation.uiautomation.Control.IsOffscreen ( self )

Property IsOffscreen.
Call IUIAutomationElement::get_CurrentIsOffscreen.
Refer https://docs.microsoft.com/en-us/windows/desktop/api/uiautomationclient/nf-uiautomationclient-iuiautomationelement-get_currentisoffscreen

◆ IsPassword()

bool uiautomation.uiautomation.Control.IsPassword ( self )

Property IsPassword.
Call IUIAutomationElement::get_CurrentIsPassword.
Refer https://docs.microsoft.com/en-us/windows/desktop/api/uiautomationclient/nf-uiautomationclient-iuiautomationelement-get_currentispassword

◆ IsRequiredForForm()

bool uiautomation.uiautomation.Control.IsRequiredForForm ( self )

Property IsRequiredForForm.
Call IUIAutomationElement::get_CurrentIsRequiredForForm.
Refer https://docs.microsoft.com/en-us/windows/desktop/api/uiautomationclient/nf-uiautomationclient-iuiautomationelement-get_currentisrequiredforform

◆ IsTopLevel()

bool uiautomation.uiautomation.Control.IsTopLevel ( self )

Determine whether current control is top level.

◆ ItemStatus()

str uiautomation.uiautomation.Control.ItemStatus ( self )

Property ItemStatus.
Call IUIAutomationElement::get_CurrentItemStatus.
Refer https://docs.microsoft.com/en-us/windows/desktop/api/uiautomationclient/nf-uiautomationclient-iuiautomationelement-get_currentitemstatus

◆ ItemType()

str uiautomation.uiautomation.Control.ItemType ( self )

Property ItemType.
Call IUIAutomationElement::get_CurrentItemType.
Refer https://docs.microsoft.com/en-us/windows/desktop/api/uiautomationclient/nf-uiautomationclient-iuiautomationelement-get_currentitemtype

◆ ListControl()

'listControl' uiautomation.uiautomation.Control.ListControl	(		self,
			searchDepth = `0xFFFFFFFF`,
			searchInterval = `SEARCH_INTERVAL`,
			foundIndex = `1`,
			element = `0`,
		**	searchProperties
	)

◆ ListItemControl()

'ListItemControl' uiautomation.uiautomation.Control.ListItemControl	(		self,
			searchDepth = `0xFFFFFFFF`,
			searchInterval = `SEARCH_INTERVAL`,
			foundIndex = `1`,
			element = `0`,
		**	searchProperties
	)

◆ LocalizedControlType()

str uiautomation.uiautomation.Control.LocalizedControlType ( self )

Property LocalizedControlType.
Call IUIAutomationElement::get_CurrentLocalizedControlType.
Refer https://docs.microsoft.com/en-us/windows/desktop/api/uiautomationclient/nf-uiautomationclient-iuiautomationelement-get_currentlocalizedcontroltype

◆ MenuBarControl()

'MenuBarControl' uiautomation.uiautomation.Control.MenuBarControl	(		self,
			searchDepth = `0xFFFFFFFF`,
			searchInterval = `SEARCH_INTERVAL`,
			foundIndex = `1`,
			element = `0`,
		**	searchProperties
	)

◆ MenuControl()

'MenuControl' uiautomation.uiautomation.Control.MenuControl	(		self,
			searchDepth = `0xFFFFFFFF`,
			searchInterval = `SEARCH_INTERVAL`,
			foundIndex = `1`,
			element = `0`,
		**	searchProperties
	)

◆ MenuItemControl()

'MenuItemControl' uiautomation.uiautomation.Control.MenuItemControl	(		self,
			searchDepth = `0xFFFFFFFF`,
			searchInterval = `SEARCH_INTERVAL`,
			foundIndex = `1`,
			element = `0`,
		**	searchProperties
	)

◆ MiddleClick()

None uiautomation.uiautomation.Control.MiddleClick	(		self,
		int	x = `None`,
		int	y = `None`,
		float	ratioX = `0.5`,
		float	ratioY = `0.5`,
		bool	simulateMove = `True`,
		float	waitTime = `OPERATION_WAIT_TIME`
	)

x: int, if < 0, middle click self.BoundingRectangle.right + x, if not None, ignore ratioX.
y: int, if < 0, middle click self.BoundingRectangle.bottom + y, if not None, ignore ratioY.
ratioX: float.
ratioY: float.
simulateMove: bool, if True, first move cursor to control smoothly.
waitTime: float.

MiddleClick(), MiddleClick(ratioX=0.5, ratioY=0.5): middle click center.
MiddleClick(10, 10): middle click left+10, top+10.
MiddleClick(-10, -10): middle click right-10, bottom-10.

◆ MoveCursorToInnerPos()

Tuple[int, int] uiautomation.uiautomation.Control.MoveCursorToInnerPos	(		self,
		int	x = `None`,
		int	y = `None`,
		float	ratioX = `0.5`,
		float	ratioY = `0.5`,
		bool	simulateMove = `True`
	)

Move cursor to control's internal position, default to center.
x: int, if < 0, move to self.BoundingRectangle.right + x, if not None, ignore ratioX.
y: int, if < 0, move to self.BoundingRectangle.bottom + y, if not None, ignore ratioY.
ratioX: float.
ratioY: float.
simulateMove: bool.
Return Tuple[int, int], two ints tuple (x, y), the cursor positon relative to screen(0, 0)
    after moving or None if control's width or height is 0.

◆ MoveCursorToMyCenter()

Tuple[int, int] uiautomation.uiautomation.Control.MoveCursorToMyCenter	(		self,
		bool	simulateMove = `True`
	)

Move cursor to control's center.
Return Tuple[int, int], two ints tuple (x, y), the cursor positon relative to screen(0, 0) after moving.

◆ MoveWindow()

bool uiautomation.uiautomation.Control.MoveWindow	(		self,
		int	x,
		int	y,
		int	width,
		int	height,
		bool	repaint = `True`
	)

Call native MoveWindow if control has a valid native handle.
x: int.
y: int.
width: int.
height: int.
repaint: bool.
Return bool, True if succeed otherwise False.

◆ Name()

str uiautomation.uiautomation.Control.Name ( self )

Property Name.
Call IUIAutomationElement::get_CurrentName.
Refer https://docs.microsoft.com/en-us/windows/desktop/api/uiautomationclient/nf-uiautomationclient-iuiautomationelement-get_currentname

◆ NativeWindowHandle()

str uiautomation.uiautomation.Control.NativeWindowHandle ( self )

Property NativeWindowHandle.
Call IUIAutomationElement::get_CurrentNativeWindowHandle.
Refer https://docs.microsoft.com/en-us/windows/desktop/api/uiautomationclient/nf-uiautomationclient-iuiautomationelement-get_currentnativewindowhandle

◆ Orientation()

int uiautomation.uiautomation.Control.Orientation ( self )

Property Orientation.
Return int, a value in class `OrientationType`.
Call IUIAutomationElement::get_CurrentOrientation.
Refer https://docs.microsoft.com/en-us/windows/desktop/api/uiautomationclient/nf-uiautomationclient-iuiautomationelement-get_currentorientation

◆ PaneControl()

'PaneControl' uiautomation.uiautomation.Control.PaneControl	(		self,
			searchDepth = `0xFFFFFFFF`,
			searchInterval = `SEARCH_INTERVAL`,
			foundIndex = `1`,
			element = `0`,
		**	searchProperties
	)

◆ ProcessId()

int uiautomation.uiautomation.Control.ProcessId ( self )

Property ProcessId.
Call IUIAutomationElement::get_CurrentProcessId.
Refer https://docs.microsoft.com/en-us/windows/desktop/api/uiautomationclient/nf-uiautomationclient-iuiautomationelement-get_currentprocessid

◆ ProgressBarControl()

'ProgressBarControl' uiautomation.uiautomation.Control.ProgressBarControl	(		self,
			searchDepth = `0xFFFFFFFF`,
			searchInterval = `SEARCH_INTERVAL`,
			foundIndex = `1`,
			element = `0`,
		**	searchProperties
	)

◆ ProviderDescription()

str uiautomation.uiautomation.Control.ProviderDescription ( self )

Property ProviderDescription.
Call IUIAutomationElement::get_CurrentProviderDescription.
Refer https://docs.microsoft.com/en-us/windows/desktop/api/uiautomationclient/nf-uiautomationclient-iuiautomationelement-get_currentproviderdescription

◆ RadioButtonControl()

'RadioButtonControl' uiautomation.uiautomation.Control.RadioButtonControl	(		self,
			searchDepth = `0xFFFFFFFF`,
			searchInterval = `SEARCH_INTERVAL`,
			foundIndex = `1`,
			element = `0`,
		**	searchProperties
	)

◆ Refind()

bool uiautomation.uiautomation.Control.Refind	(		self,
		float	maxSearchSeconds = `TIME_OUT_SECOND`,
		float	searchIntervalSeconds = `SEARCH_INTERVAL`,
		bool	raiseException = `True`
	)

Refind the control every searchIntervalSeconds seconds in maxSearchSeconds seconds.
maxSearchSeconds: float.
searchIntervalSeconds: float.
raiseException: bool, if True, raise a LookupError if timeout.
Return bool, True if find.

◆ RemoveSearchProperties()

None uiautomation.uiautomation.Control.RemoveSearchProperties	(		self,
		**	searchProperties
	)

searchProperties: dict, same as searchProperties in `Control.__init__`.

◆ RightClick()

None uiautomation.uiautomation.Control.RightClick	(		self,
		int	x = `None`,
		int	y = `None`,
		float	ratioX = `0.5`,
		float	ratioY = `0.5`,
		bool	simulateMove = `True`,
		float	waitTime = `OPERATION_WAIT_TIME`
	)

x: int, if < 0, right click self.BoundingRectangle.right + x, if not None, ignore ratioX.
y: int, if < 0, right click self.BoundingRectangle.bottom + y, if not None, ignore ratioY.
ratioX: float.
ratioY: float.
simulateMove: bool, if True, first move cursor to control smoothly.
waitTime: float.

RightClick(), RightClick(ratioX=0.5, ratioY=0.5): right click center.
RightClick(10, 10): right click left+10, top+10.
RightClick(-10, -10): right click right-10, bottom-10.

◆ ScrollBarControl()

'ScrollBarControl' uiautomation.uiautomation.Control.ScrollBarControl	(		self,
			searchDepth = `0xFFFFFFFF`,
			searchInterval = `SEARCH_INTERVAL`,
			foundIndex = `1`,
			element = `0`,
		**	searchProperties
	)

◆ SemanticZoomControl()

'SemanticZoomControl' uiautomation.uiautomation.Control.SemanticZoomControl	(		self,
			searchDepth = `0xFFFFFFFF`,
			searchInterval = `SEARCH_INTERVAL`,
			foundIndex = `1`,
			element = `0`,
		**	searchProperties
	)

◆ SendKey()

None uiautomation.uiautomation.Control.SendKey	(		self,
		int	key,
		float	waitTime = `OPERATION_WAIT_TIME`
	)

Make control have focus first and type a key.
`self.SetFocus` may not work for some controls, you may need to click it to make it have focus.
key: int, a key code value in class Keys.
waitTime: float.

◆ SendKeys()

None uiautomation.uiautomation.Control.SendKeys	(		self,
		str	text,
		float	interval = `0.01`,
		float	waitTime = `OPERATION_WAIT_TIME`,
		bool	charMode = `True`
	)

Make control have focus first and type keys.
`self.SetFocus` may not work for some controls, you may need to click it to make it have focus.
text: str, keys to type, see the docstring of `SendKeys`.
interval: float, seconds between keys.
waitTime: float.
charMode: bool, if False, the text typied is depend on the input method if a input method is on.

◆ SeparatorControl()

'SeparatorControl' uiautomation.uiautomation.Control.SeparatorControl	(		self,
			searchDepth = `0xFFFFFFFF`,
			searchInterval = `SEARCH_INTERVAL`,
			foundIndex = `1`,
			element = `0`,
		**	searchProperties
	)

◆ SetFocus()

bool uiautomation.uiautomation.Control.SetFocus ( self )

Call IUIAutomationElement::SetFocus.
Refer https://docs.microsoft.com/en-us/windows/desktop/api/uiautomationclient/nf-uiautomationclient-iuiautomationelement-setfocus

◆ SetSearchDepth()

None uiautomation.uiautomation.Control.SetSearchDepth	(		self,
		int	searchDepth
	)

◆ SetSearchFromControl()

None uiautomation.uiautomation.Control.SetSearchFromControl	(		self,
		'Control'	searchFromControl
	)

searchFromControl: `Control` or its subclass

◆ SetWindowText()

bool uiautomation.uiautomation.Control.SetWindowText	(		self,
		str	text
	)

Call native SetWindowText if control has a valid native handle.

◆ Show()

bool uiautomation.uiautomation.Control.Show	(		self,
		float	waitTime = `OPERATION_WAIT_TIME`
	)

Call native `ShowWindow(SW.Show)`.
Return bool, True if succeed otherwise False.

◆ ShowWindow()

bool uiautomation.uiautomation.Control.ShowWindow	(		self,
		int	cmdShow,
		float	waitTime = `OPERATION_WAIT_TIME`
	)

Get a native handle from self or ancestors until valid and call native `ShowWindow` with cmdShow.
cmdShow: int, a value in in class `SW`.
waitTime: float.
Return bool, True if succeed otherwise False.

◆ SliderControl()

'SliderControl' uiautomation.uiautomation.Control.SliderControl	(		self,
			searchDepth = `0xFFFFFFFF`,
			searchInterval = `SEARCH_INTERVAL`,
			foundIndex = `1`,
			element = `0`,
		**	searchProperties
	)

◆ SpinnerControl()

'SpinnerControl' uiautomation.uiautomation.Control.SpinnerControl	(		self,
			searchDepth = `0xFFFFFFFF`,
			searchInterval = `SEARCH_INTERVAL`,
			foundIndex = `1`,
			element = `0`,
		**	searchProperties
	)

◆ SplitButtonControl()

'SplitButtonControl' uiautomation.uiautomation.Control.SplitButtonControl	(		self,
			searchDepth = `0xFFFFFFFF`,
			searchInterval = `SEARCH_INTERVAL`,
			foundIndex = `1`,
			element = `0`,
		**	searchProperties
	)

◆ StatusBarControl()

'StatusBarControl' uiautomation.uiautomation.Control.StatusBarControl	(		self,
			searchDepth = `0xFFFFFFFF`,
			searchInterval = `SEARCH_INTERVAL`,
			foundIndex = `1`,
			element = `0`,
		**	searchProperties
	)

◆ TabControl()

'TabControl' uiautomation.uiautomation.Control.TabControl	(		self,
			searchDepth = `0xFFFFFFFF`,
			searchInterval = `SEARCH_INTERVAL`,
			foundIndex = `1`,
			element = `0`,
		**	searchProperties
	)

◆ TabItemControl()

'TabItemControl' uiautomation.uiautomation.Control.TabItemControl	(		self,
			searchDepth = `0xFFFFFFFF`,
			searchInterval = `SEARCH_INTERVAL`,
			foundIndex = `1`,
			element = `0`,
		**	searchProperties
	)

◆ TableControl()

'TableControl' uiautomation.uiautomation.Control.TableControl	(		self,
			searchDepth = `0xFFFFFFFF`,
			searchInterval = `SEARCH_INTERVAL`,
			foundIndex = `1`,
			element = `0`,
		**	searchProperties
	)

◆ TextControl()

'TextControl' uiautomation.uiautomation.Control.TextControl	(		self,
			searchDepth = `0xFFFFFFFF`,
			searchInterval = `SEARCH_INTERVAL`,
			foundIndex = `1`,
			element = `0`,
		**	searchProperties
	)

◆ ThumbControl()

'ThumbControl' uiautomation.uiautomation.Control.ThumbControl	(		self,
			searchDepth = `0xFFFFFFFF`,
			searchInterval = `SEARCH_INTERVAL`,
			foundIndex = `1`,
			element = `0`,
		**	searchProperties
	)

◆ TitleBarControl()

'TitleBarControl' uiautomation.uiautomation.Control.TitleBarControl	(		self,
			searchDepth = `0xFFFFFFFF`,
			searchInterval = `SEARCH_INTERVAL`,
			foundIndex = `1`,
			element = `0`,
		**	searchProperties
	)

◆ ToBitmap()

Bitmap uiautomation.uiautomation.Control.ToBitmap	(		self,
		int	x = `0`,
		int	y = `0`,
		int	width = `0`,
		int	height = `0`
	)

Capture control to a Bitmap object.
x, y: int, the point in control's internal position(from 0,0).
width, height: int, image's width and height from x, y, use 0 for entire area.
               If width(or height) < 0, image size will be control's width(or height) - width(or height).

◆ ToolBarControl()

'ToolBarControl' uiautomation.uiautomation.Control.ToolBarControl	(		self,
			searchDepth = `0xFFFFFFFF`,
			searchInterval = `SEARCH_INTERVAL`,
			foundIndex = `1`,
			element = `0`,
		**	searchProperties
	)

◆ ToolTipControl()

'ToolTipControl' uiautomation.uiautomation.Control.ToolTipControl	(		self,
			searchDepth = `0xFFFFFFFF`,
			searchInterval = `SEARCH_INTERVAL`,
			foundIndex = `1`,
			element = `0`,
		**	searchProperties
	)

◆ TreeControl()

'TreeControl' uiautomation.uiautomation.Control.TreeControl	(		self,
			searchDepth = `0xFFFFFFFF`,
			searchInterval = `SEARCH_INTERVAL`,
			foundIndex = `1`,
			element = `0`,
		**	searchProperties
	)

◆ TreeItemControl()

'TreeItemControl' uiautomation.uiautomation.Control.TreeItemControl	(		self,
			searchDepth = `0xFFFFFFFF`,
			searchInterval = `SEARCH_INTERVAL`,
			foundIndex = `1`,
			element = `0`,
		**	searchProperties
	)

◆ WheelDown()

None uiautomation.uiautomation.Control.WheelDown	(		self,
		int	x = `None`,
		int	y = `None`,
		float	ratioX = `0.5`,
		float	ratioY = `0.5`,
		int	wheelTimes = `1`,
		float	interval = `0.05`,
		float	waitTime = `OPERATION_WAIT_TIME`
	)

Make control have focus first, move cursor to the specified position and mouse wheel down.
x: int, if < 0, move x cursor to self.BoundingRectangle.right + x, if not None, ignore ratioX.
y: int, if < 0, move y cursor to self.BoundingRectangle.bottom + y, if not None, ignore ratioY.
ratioX: float.
ratioY: float.
wheelTimes: int.
interval: float.
waitTime: float.

◆ WheelUp()

None uiautomation.uiautomation.Control.WheelUp	(		self,
		int	x = `None`,
		int	y = `None`,
		float	ratioX = `0.5`,
		float	ratioY = `0.5`,
		int	wheelTimes = `1`,
		float	interval = `0.05`,
		float	waitTime = `OPERATION_WAIT_TIME`
	)

Make control have focus first, move cursor to the specified position and mouse wheel up.
x: int, if < 0, move x cursor to self.BoundingRectangle.right + x, if not None, ignore ratioX.
y: int, if < 0, move y cursor to self.BoundingRectangle.bottom + y, if not None, ignore ratioY.
ratioX: float.
ratioY: float.
wheelTimes: int.
interval: float.
waitTime: float.

◆ WindowControl()

'WindowControl' uiautomation.uiautomation.Control.WindowControl	(		self,
			searchDepth = `0xFFFFFFFF`,
			searchInterval = `SEARCH_INTERVAL`,
			foundIndex = `1`,
			element = `0`,
		**	searchProperties
	)

メンバ詳解

◆ foundIndex

uiautomation.uiautomation.Control.foundIndex

◆ regexName

uiautomation.uiautomation.Control.regexName

◆ searchDepth

uiautomation.uiautomation.Control.searchDepth

◆ searchFromControl

uiautomation.uiautomation.Control.searchFromControl

◆ searchInterval

uiautomation.uiautomation.Control.searchInterval

◆ searchProperties

uiautomation.uiautomation.Control.searchProperties

◆ ValidKeys

uiautomation.uiautomation.Control.ValidKeys = set(['ControlType', 'ClassName', 'AutomationId', 'Name', 'SubName', 'RegexName', 'Depth', 'Compare'])

static

このクラス詳解は次のファイルから抽出されました:

uiautomation/uiautomation.py

公開メンバ関数

静的公開メンバ関数

公開変数類

静的公開変数類

構築子と解体子

◆ __init__()

◆ Control()

メソッド詳解

◆ __str__()

◆ AcceleratorKey()

◆ AccessKey()

◆ AddSearchProperties()

◆ AriaProperties()

◆ AriaRole()

◆ AutomationId()

◆ BoundingRectangle()

◆ ButtonControl()

◆ CalendarControl()

◆ CaptureToImage()

◆ CheckBoxControl()

◆ ClassName()

◆ Click()

◆ ComboBoxControl()

◆ ControlType()

◆ ControlTypeName()

◆ CreateControlFromControl()

◆ CreateControlFromElement()

◆ Culture()

◆ CustomControl()

◆ DataGridControl()

◆ DataItemControl()

◆ Disappears()

◆ DocumentControl()

◆ DoubleClick()

◆ DragDrop()

◆ EditControl()

◆ Element()

◆ Exists()

◆ FrameworkId()

◆ GetAncestorControl()

◆ GetCachedPattern()

◆ GetChildren()

◆ GetClickablePoint()

◆ GetColorfulSearchPropertiesStr()

◆ GetFirstChildControl()

◆ GetLastChildControl()

◆ GetLegacyIAccessiblePattern()

◆ GetNextSiblingControl()

◆ GetParentControl()

◆ GetPattern()

◆ GetPatternAs()

◆ GetPixelColor()

◆ GetPreviousSiblingControl()

◆ GetPropertyValue()

◆ GetPropertyValueEx()

◆ GetRuntimeId()

◆ GetSearchPropertiesStr()

◆ GetSiblingControl()

◆ GetTopLevelControl()

◆ GetWindowText()

◆ GroupControl()

◆ HasKeyboardFocus()

◆ HeaderControl()

◆ HeaderItemControl()

◆ HelpText()

◆ Hide()

◆ HyperlinkControl()

◆ ImageControl()

◆ IsContentElement()

◆ IsControlElement()

◆ IsDataValidForForm()

◆ IsEnabled()

◆ IsKeyboardFocusable()

◆ IsOffscreen()

◆ IsPassword()

◆ IsRequiredForForm()

◆ IsTopLevel()

◆ ItemStatus()

◆ ItemType()

◆ ListControl()

◆ init()

◆ str()
